BA2PC™: Bill Acceptor to
RS-232 Interface
Licensed under US Patent 5,822,215
for Public Access Internet Terminals
The BA2PC is an electronic circuit designed to interface a standard bill validator to any PC. Combined with free software foundations it provides a simple but elegant solution to the bill validator aspect of the public access PC platform. It uses a standard DB-9 serial port connector and connects to any standard 120v AC bill validator. We highly recommend Coinco brand bill validators. The BA2PC interface uses Digital Signal Processing to sample and validate the incoming dollar bill and then buffers the count freeing up system resources on the CPU.
Internet Kiosks combine the look and feel of traditional public display video gaming terminals, with direct access to the Internet.This combination of easy access, easy payment(UNI's patented bill acceptor software) and sturdy, attractive enclosures, has made the kiosk a popular option nation wide. If you are interested in providing computer use and Internet access to the public and want further information on how to go about it, read on.
Digital Signal Processing: Never misses a dollar bill. 99.998% accuracy relaying valid bill validator information.
The BA2PC frames, buffers, and transmits the bill validator information to the PC via an interrupt driven comm. port. Other devices rely on "polling" the bill validator and comm. port which means lost dollar bills when the CPU is under load.
The BA2PC isolates the computer's serial port from the bill validator using optical. That means there is no risk of the 120v AC getting to your PC.

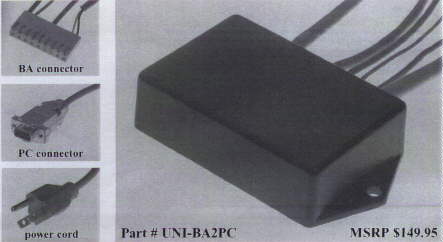

1-1/2" x 3" with mounting tabs.
7' DB connector.
7' grounded power cord.
operating temperature: 0-150 degrees Fahrenheit.
relative humidity: 5%-95% non-condensing.
MTBF: 508,080 hrs.

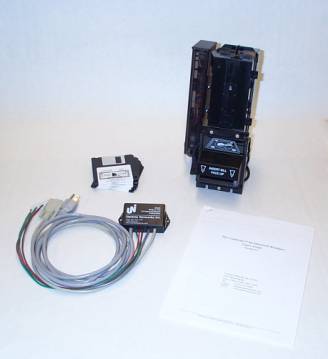

BA2PC™ Software Developer’s Kit
Includes Coinco MAG50B Bill Acceptor
BA2PC RS-232 Interface
Sample source code and user's guide
http://www.upstatenetworks.com
(315)
732-5664
Summary:
The BA2PC™ is an electronic circuit designed to interface a standard bill validator to any PC. Combined with free software foundations it provides a simple but elegant solution to the bill validator aspect of the public access PC platform. It uses a standard DB-9 serial port connector and connects to any standard 120v AC bill validator. We highly recommend Coinco brand bill validators. The BA2PC™ interface uses Digital Signal Processing to sample and validate the incoming dollar bill and then buffers the count freeing up system resources on the CPU.
DTR
set HIGH enables Bill Validator. Low
disables Bill Validator
Input
String F8h to FEh indicates bill inserted.
One Character per one dollar, Five (5) chars for a $5 etc…
Private
Sub ba_port_OnComm()
On Error Resume Next
Select Case ba_port.CommEvent
'Errors
Case comBreak 'A
Break was received
Case
comDCTO 'CD timeout
Case comCTSTO 'CTS
timeout
Case comDSRTO 'DSR
timeout
Case comFrame
'Framing error
Case comOverrun 'Data Lost
Case comRxOver 'Receive
Buffer overflow
Case comRxParity 'Parity
Error
Case comTxFull 'Transmit
buffer full
'Events
Case comEvCD 'Change in the CD line
Case comEvCTS 'Change
in the CTS line
Case comEvDSR 'Change
in the DSR line
Case comEvRing 'Change in
the Ring indicator
Case comEvReceive 'Received
RThreshold # of Chars
t$ = time$ 'Determine time
interval for value
For j% = 1 To intervals
If t$ < interval(j%).time Then
Exit For
End If
Next j%
j% = j% - 1
If j% < 1 Then
j% = intervals
End If
Do While ba_port.InBufferCount > 0
bill$ = ba_port.Input
dollarsNow = 0
For i% = 1 To Len(bill$)
b$ = Mid$(bill$, i%, 1)
If (b$ >= Chr$(&HF8)) And (b$ <= Chr$(&HFE))
Then
Next
Open App.Path & "\log.txt" For Append As #1
Print #1, Date$, time$, "Dollars inserted:"; dollarsNow;
" ";
For i% = 1 To Len(bill$)
Print #1, Hex(Asc(Mid$(bill$, i%, 1)));
Next
Print #1, " "
Close #1
Loop
Case comEvSend 'There are
SThreshold number of characters in the transmit buffer
End Select
End Sub

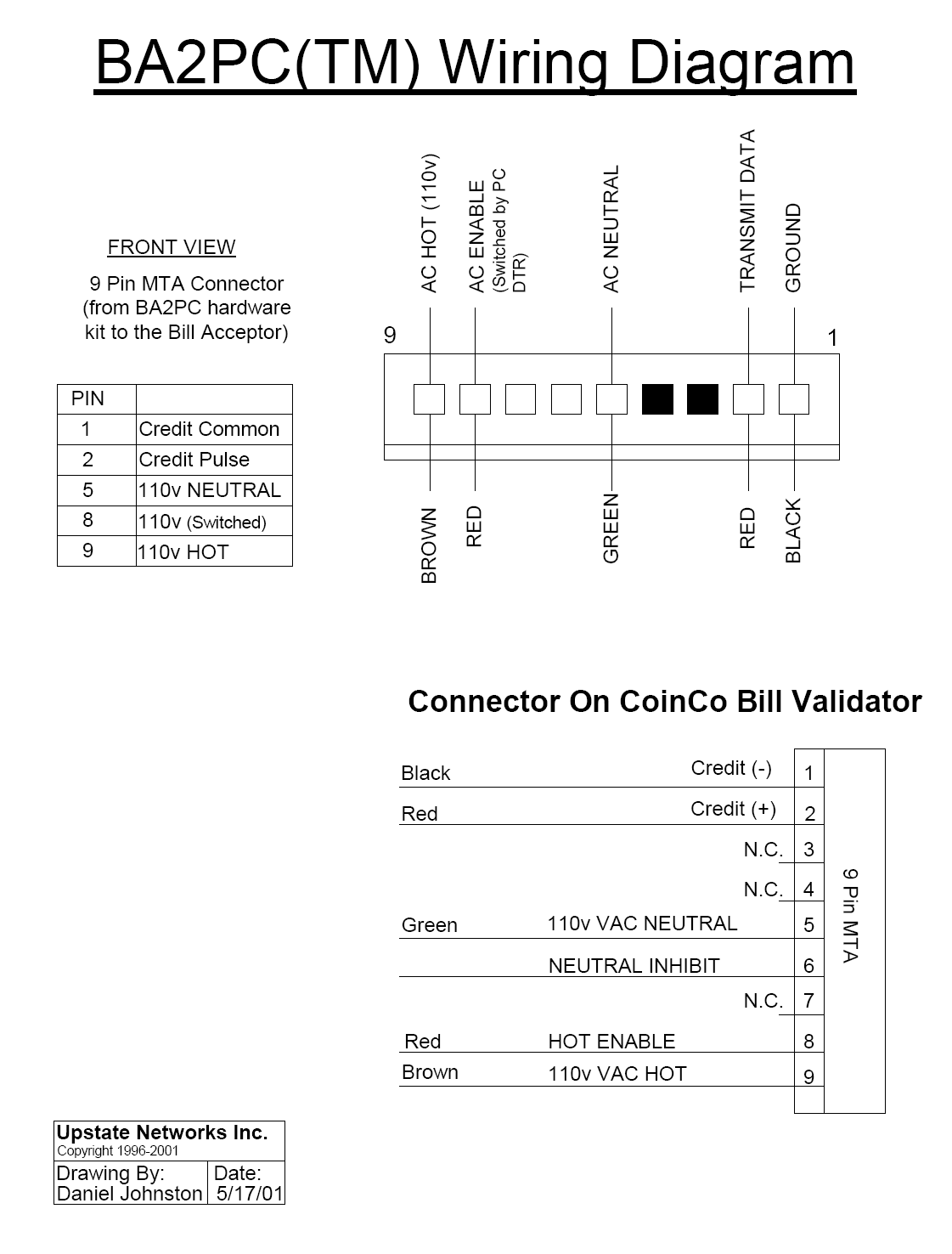

To turn the Bill acceptor on/off:
'Start
accepting bills....
ba_port.RTSEnable = True
'Turn on BA adapter circuit
ba_port.DTREnable = True
'Turn on Bill Acceptor
ba_port.PortOpen = True
ba_port.PortOpen = False
'Turn off Bill Acceptor
QBASIC
source code
OPEN
"com1: 300, n, 8, 1,cd0,cs0,ds0,op0,rs,rb2048" FOR INPUT AS #1
OPEN
"c:\uni\credit.dat" FOR OUTPUT AS #2
PRINT
#2, 0
CLOSE
#2
OPEN
"c:\uni\credit.dat" FOR OUTPUT AS #2
delay
= 0
COLOR
15, 1, 1
CLS
PRINT
" Please
insert $1 for 10 minutes or $5 for an hour of
INTERNET"
PRINT
PRINT
" When you are done inserting all of your bills, press any key to
continue..."
LOCATE
5, 35
PRINT
"Credit: $"; credit
ON
COM(1) GOSUB getbill
COM(1)
ON
credit
= 0
OUT
&H3F8, 1
DO
WHILE INKEY$ = ""
LOOP
OUT
&H3F8, 0
REM
PRINT "Total Credit: "; credit
PRINT
#2, credit
CLOSE
REM
DO WHILE INKEY$ = "": LOOP
REM
stop
SYSTEM
getbill:
REM
PRINT HEX$(ASC(INPUT$(1, 1)))
credit
= credit + 1
LOCATE
5, 35
PRINT
"Credit: $"; credit
RETURN
